DISC

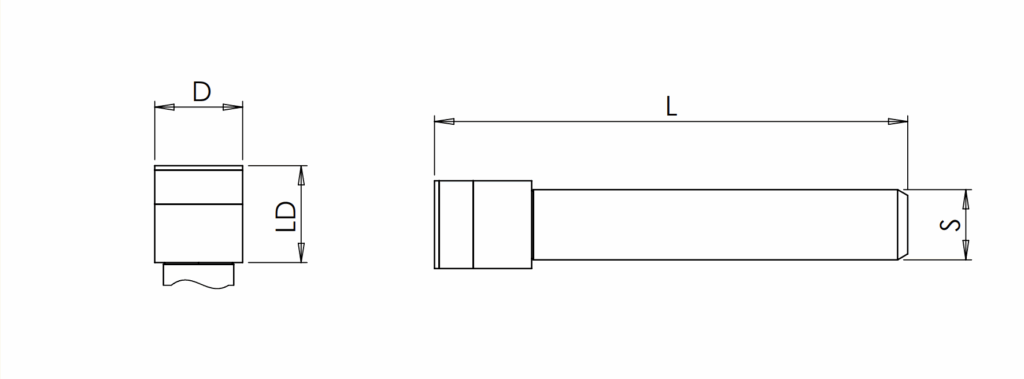

| Part Number | L (mm) | S (mm) | D (mm) | LN (mm) | LN2 (mm) | LD (mm) | DN (mm) | Cloth | Rubber Hardness |
|---|---|---|---|---|---|---|---|---|---|
| DR15-R03-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 3RBD | Standard |
| DR15-R03-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 3RBD | Supersoft |
| DR15-R09-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 9RBD | Standard |
| DR15-R09-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 9RBD | Supersoft |
| DR15-N09-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 9NBD | Standard |
| DR15-N09-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 9NBD | Supersoft |
| DR15-R20-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 20RBD | Standard |
| DR15-R20-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 20RBD | Supersoft |
| DR15-N20-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 20NBD | Standard |
| DR15-N20-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 20NBD | Supersoft |
| DR15-R40-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 40RBD | Standard |
| DR15-R40-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 40RBD | Supersoft |
| DR15-N40-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 40NBD | Standard |
| DR15-N40-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 40NBD | Supersoft |
| DR15-N80-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 80NBD | Standard |
| DR15-N80-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 80NBD | Supersoft |
| DR15-N12-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 120NBD | Standard |
| DR15-N12-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 120NBD | Supersoft |
| DR15-N24-M1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 240NBD | Standard |
| DR15-N24-S1108 | 80 | 12 | 15 | 25 | 42 | 12 | 6 | 240NBD | Supersoft |
